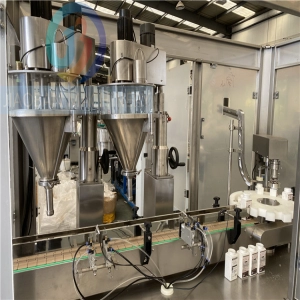

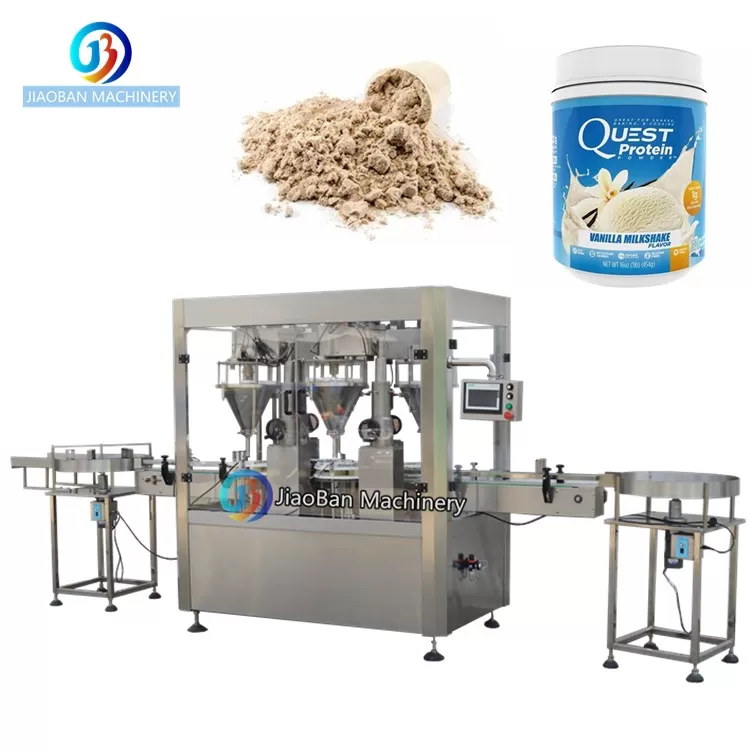

Protein powder bottle filling machine

Introduction:Protein powder bottle filling machine

Product Description

Usage:

This machine is mainly suitable for filling pepper,falvor spices,milk powder,protein powder,toner,chemical powder,talcum powder,etc.

Function and features:

Workflow:powder lifting--bottle unscrambling--filling--adding rubber stopper--adding cap--capping--bottle collecting.
Modular transparent product hopper,easy dismantle ans ckean without tools
Adopts servo motor drive spiral,has advantages of high measuring precision,not easy to wear,and stable performance,etc(when the filling volume difference is large,the corresponding screw needs to be replaced)
Use advanced PLC control system,color touch screen display
For multiple dust materials,the product outlet can be installed dust collection device.
Discharging mouth has automatic locking device,prevent leakage of material.
Machine shell and all parts contact product are made of 304 stainless steel,meets GMP standard.

Techinical Parameter

Model	FX1	FX2
Filling head number	1	1
Capping head number	1	1
Filling volume	10-1000ml	10-1000ml
Working speed	5-20bottles/min	10-40 bottles/min
Filling accuracy	≤ ±1.5% depends on proucts	≤ ±1.5% depends on proucts
Pass rate	≥ 98%	≥ 98%
Power supply	1ph 220V/3ph 380V, 50/60Hz	1ph 220V/3ph 380V, 50/60Hz
Power	1.8KW	2.4KW
Net weight	500kg	650kg
Overall dimension	L3500 × W1500 × H1900mm	L3800 × W1500 × H1900mm

More higher speed accept customization
